Excellent performance forging machine for brass valve

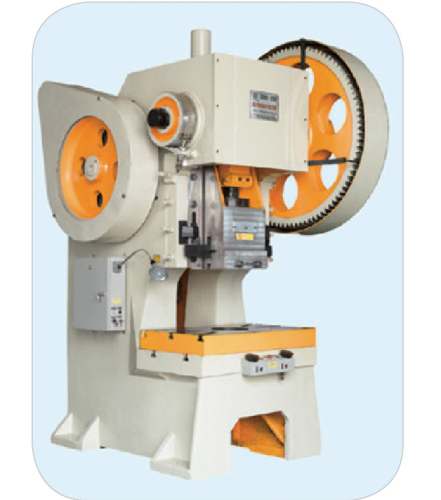

Structural features of JD21:

The machine is an international type press with excellent performance .It adopts dual key type clutch structure, which can overcome rebound during punching effectively.The models marked with character‘A’ is privided with dual hand safety production device. Whicn can choose emergent braking device and photo electric production.


Parameter:

Specifications Model Unit JD21-40 JD21-63 JD21-80 JD21-100 JD21-125 JD21-400 JD21-630
Nominal Capacity kn 400 630 800 1000 1250 4000 6300
Nominal Pressure Stroke mm 4 5 5 5.5 6 6.5 6.5or 7.5
Stroke Of Slide mm 100 120 120 130 140 160 120or160
Strokes Per Minute spm 45 40 40 40 38 32 32
Max.Die Set Height mm 260 265 295 365 350 400 385or360
Die Set Height Adjustment mm 65 80 80 100 100 130 130
Distance From Slide Centre To The Frame mm 250 290 310 380 380 350 330
Bottom Size Of Slide(FB*LR) mm 260*300 290*330 340*430 360*430 360*430 500*630 510*630
Size Of The Handle Hole (Dia./Depth) mm 50/70Dia 60/70Dia 60/70Dia 60/85Dia 60/85Dia 60/100Dia 80/100Dia
Table Size(FB*LR) mm 260*300 290*330 340*400 360*430 360*430 500*630 510*630
Thickness Of Table mm 70 85 95 115 125 170 180
Height Of Table Surface Above Floor mm 860 890 900 960 980 1120 1180
Main Motor Power kw 5.5 7.5 7.5 7.5 11 22 22
Outline Diamensions (FR*LB*H) mm

1400*1690

*2700

500*1950

*3060

1500*1985

*3160

1750*2500

*3390

1780*1985

*3390

1400*2500

*2700

2400*3000

*4100

Net Weight kg 4100 5900 700 12500 13500 33350 4000
