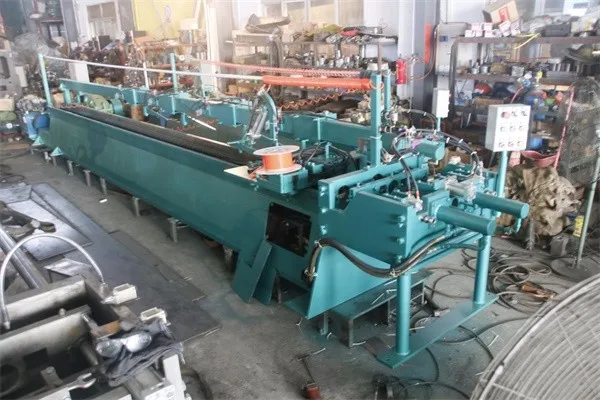

 Without heading double tube copper/brass rod peeling machine

This machine design without heading,reduce labor and improve production efficiency.Double bar efficiency production faster,electronic control is simple,easy to use,easy to operation and maintenance.

Originally designed for copper,aluminum rod peeling,stretching,special-shaped copper,aluminum,steel excellent drawing effects(steel needs to be       strengthened,lubricating oil assort).Double bar double extension φ15 below bar suitable for drawing and improve production efficiency.



Model specification Effective lengths Drawing speed(m) Main motor power
2T 20dia below 2.5-20m 30-35 11kw
5T 30dia below 2.5-20m 20-25 18.5kw
10T 40dia below 2.5-20m 12-20 37kw
20T 50dia below 2.5-20m 10-15 45kw
Related machine

1.Melting furnace+holding furnace

This conjoined furnace control by two electric boxes,double oven style could feeding behind, in front of furnace could keep temperature and casting,holding furnace with multiaspect mold installation function.

This conjoined furnace control by two electric boxes, double oven style could feeding behind, in front of furnace could keep temperature and casting, holding furnace with multiaspect mold installation function.

Model  Power(kw) Melting Rate Capacity(T)
300 75+45 300 1.0+1.8
500 120+75 500 1.6+2.5
750 180+75(120) 750 2.5+4
1000 240+120 1000 3.5+5



2.Vertical type 4 roller casting machine



model  casting speed(m/s) casting diameter motor power(kw)
SYO-70 0-0.035 5-70dia 2.2
SYO-100 0-0.035 10-100dia 3
SYO-120 0-0.035 60-120dia 4
SYO-160 0-0.035 80-160dia 5.5
SYO-200 0-0.05 10-200dia 7.5

3.Pneumatic cutting machine

This machine uses double motor box,the main control box electrical fault,manually using the emergency electrical box,without impacting production,cut to exact length adjustable feed more durable stability and tool.

model Specification Production speed Device power Air pressure
Q65 Φ6-65 10s/time 3kw 0-1MPA
Q80 Φ10-80 25s/time 4kw 0-1MPA
Q120 Φ20-120 32s/time 5.5kw 0-1MPA
Q160 Φ30-160 45s/time 7.5kw 0-1MPA



Packaging & Shipping

Contact us

if you are interested in this machine, please tell me your requirement, we will recommend suitable machine for you.



If you come to china,we can take you to see our customers plant,

If you too busy not come to china,please contact me,you will see our operation video.
