Brass bar level casting production line for sale

Product Description

Specifications

1 chain style single peeling
2 flexible operating design
3 suitable for various spec copper,brass
4 heading function

The complete line solution below:

1 melting furnace and holding furnace

brass bar plant complete machinery in production

This conjoined furnace control by two electric boxes,double oven style could feeding behind, in front of furnace could keep temperature and casting,holding furnace with multiaspect mold installation function.

Specification:

model power  melting rate chamber capacity
300 75+45 300 1.0+1.8
500 120+75 500 1.6+2.5
750 180+75(120) 750 2.5+4
1000 240+120 1000 3.5+5

2  Casting machine


Performance advantages and characteristics:



Can make round(square)bar,hexagon, and other special shape, suitable to work with the furnace which use coal or electric. This product have a stable performance, long life and wide range of application.





Specification:



Model

Casting speed(m/s)

Casting diameter

Motor power(kw)

SYO-70

0-0.035

5-70dia

2.2

SYO-100

0-0.035

10-100dia

3

SYO-120

0-0.035

60-120dia

4

3  Pneumatic cutting machine


The machine could be set up the speed and length for automatic cutting, can be 24 hours working without people’s monitor, easy operation, stable performance is one of the more advanced machine in China.



model specification production speed  power air pressure
Q65 Φ6-65 10s/time 3kw 0-1MPA
Q80 Φ10-80 25s/time 4kw 0-1MPA
Q120 Φ20-120 32s/time 5.5kw 0-1MPA
Q160 Φ30-160 45s/time 7.5kw 0-1MPA



4 peeling machine(without heading double tube)


This machine design without heading,reduce labor and improve production efficiency.Double bar efficiency production faster,electronic control is simple,easy to use,easy to operation and maintenance.

Originally designed for copper,aluminum rod peeling,stretching,special-shaped copper,aluminum,steel excellent drawing effects(steel needs to be strengthened,lubricating oil assort).Double bar double extension φ15 below bar suitable for drawing and improve production efficiency.



Specification:



model specification peeling length peeling speed power
1.5T Φ15 below 2.5-20m 35-45 11
2T Φ20 below 2.5-20m 30-35 15
5T Φ30 below 2.5-20m 20-25 18.5
10T Φ40 below 2.5-20m 12-20 37
20T Φ50 below 2.5-20m 10-15 45

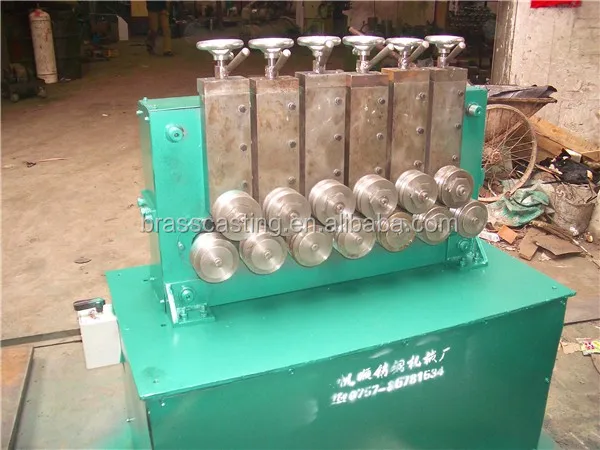

5 Straightening machine

brass bar plant complete machinery in production

This machine can straighten materials:brass tube (rod),Bronze tube (bar),aluminum bar

Specification:

model

Product size

precision motor power
YT-11A S3-12 0.1MM/100MM 3
YT-11B S5-12 0.1MM/100MM 4



Our Services

Before Sale:

  • 1. 6*24 working hours,reply less than 24 hours
  • 2. Introduce our product in details
  • 3. Customized design is available
  • 4.Offer the video or visiting factory is available

 After Sale:

  • 1. Inform the processing status
  • 2.Spare parts can be provide
  • 3.Engineer can working on abroad for installation and training
  • 4.Provide technical support and update information
  • 5. Provide after-sales consulting forever
Contact us

 Welcome to visit our factory, we will take you visit our client's factory so that you can clear for each process. we can provide you the most advanced technology in the world.pls feel free to contact us if you are interested.
