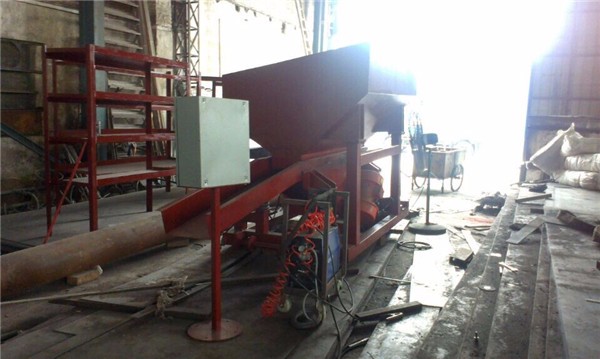

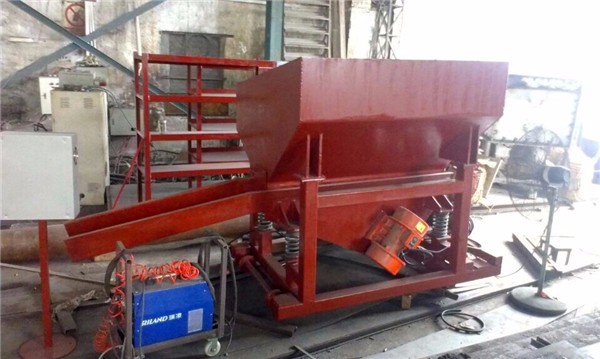

 Industrial equipment vibration feeder machine for melting furnace

 It is suitable for feeding the massive ,granular and podwered material from the storage bunker or funnal to the device continuously .Mainly used in mining metallurgy, coal building materials, machinery and other industries.

Specification:

Model Power
2ton 2.2kw motor 2pcs






Related machine

1.Melting furnace+holding furnace

This conjoined furnace control by two electric boxes,double oven style could feeding behind, in front of furnace could keep temperature and casting,holding furnace with multiaspect mold installation function.

two wheel precise polishing machine for big size brass rod, metal polishing machine manufacturer

This conjoined furnace control by two electric boxes, double oven style could feeding behind, in front of furnace could keep temperature and casting, holding furnace with multiaspect mold installation function.



Model  Power(kw) Melting Rate Capacity(T)
300 75+45 300 1.0+1.8
500 120+75 500 1.6+2.5
750 180+75(120) 750 2.5+4
1000 240+120 1000 3.5+5



2.Vertical type 4 roller casting machine

two wheel precise polishing machine for big size brass rod, metal polishing machine manufacturer



model  casting speed(m/s) casting diameter motor power(kw)
SYO-70 0-0.035 5-70dia 2.2
SYO-100 0-0.035 10-100dia 3
SYO-120 0-0.035 60-120dia 4
SYO-160 0-0.035 80-160dia 5.5
SYO-200 0-0.05 10-200dia 7.5

3.Pneumatic cutting machine

This machine uses double motor box,the main control box electrical fault,manually using the emergency electrical box,without impacting production,cut to exact length adjustable feed more durable stability and tool.



model Specification Production speed Device power Air pressure
Q65 Φ6-65 10s/time 3kw 0-1MPA
Q80 Φ10-80 25s/time 4kw 0-1MPA
Q120 Φ20-120 32s/time 5.5kw 0-1MPA
Q160 Φ30-160 45s/time 7.5kw 0-1MPA



two wheel precise polishing machine for big size brass rod, metal polishing machine manufacturer



4.Peeling  machine (without heading for single tube)

This machine can peeling without heading, not only reduce labor but improve production efficiency easy to operation and maintenance.

Model specification Effective lengths Drawing speed(m) Main motor power
2T Φ50 2.5-20m 20-30 11kw
5T Φ65 2.5-20m 15-25 18.5kw
10T Φ80 2.5-20m 12-20 37kw
20T Φ120 2.5-20m 10-16 45kw



two wheel precise polishing machine for big size brass rod, metal polishing machine manufacturer
